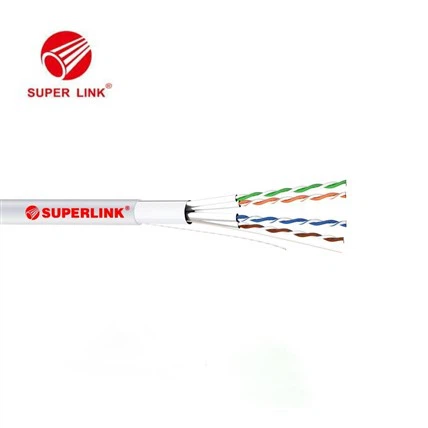

SFTP CAT5E Lan Cable RJ45 Data Cable

SFTP CAT5E Lan cable RJ45 data cable Electronic Characteristics Impedance: 100± 15(ohms). Rated Temperture: 75º C DC Resistance unbalance( percent ): Max2.5 DC Resistance 20º C: 8.4(Ohms/100m) Pair-to-Ground Capacitance Unbalance: 330(Pf/100m) Transfer Impendance: Max 10 mohms/m@100MHz. Installation...

SFTP CAT5E Lan cable RJ45 data cable

Electronic Characteristics

Impedance: 100± 15(ohms). Rated Temperture: 75º C DC Resistance unbalance(%): Max2.5 DC Resistance 20º C: 8.4(Ohms/100m) Pair-to-Ground Capacitance Unbalance: 330(Pf/100m) Transfer Impendance: Max 10 mohms/m@100MHz. Installation Resistance: >5000MΩ KM Dielectric strength: DC 2500V 2S

Company profile

we are a professional cable and materails manufacturer from china with 15years of production experience. we have own factory, in hangzhou china and Hanoi Vietnam. we produce coaxial cable, network cable, patch cord, speaker cable, alarm cable, control cable, power cable, fiber cable, fiber patch cord, RJ45 Connector etc. And materials, like CCA, ALMG,CCAM.

Attenuations

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90
